Description
|
Parameter |
Value |
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 |
|
Video Bandwidth |
18 Gbps |
|
Video Resolution |
Up to 4K2K@60Hz YUV 4:4:4 |
|
USB Compliance |
USB 2.0 |
|
IR Level |
5Vp-p |
|
IR Frequency |
Wideband 20K-60KHz |
|
Input DOC Signal |
5.0 volts/P-P |
|
Transmission Distance |
HDBaseT Mode: 4K60 –328ft / 100m Long Reach Mode: 1080P–492ft / 150m 4K60 — 394ft / 120m |
|
Color Space |
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Color Depth |
8 / 10 / 12bit |
|
Interface |

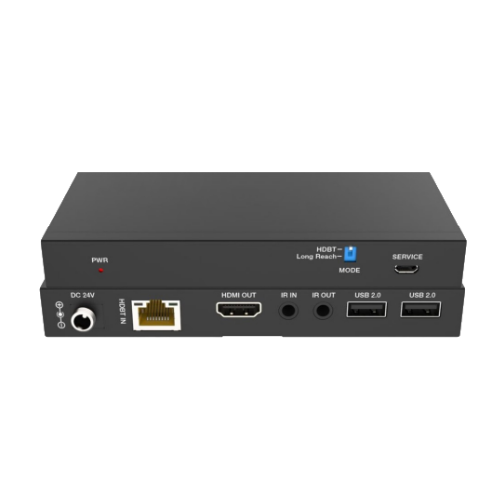

Input: 1 x HDBT IN [RJ45 with light] 1x IR IN [3.5mm Stereo Mini-jack] 1 x SERVICE [Micro-USS jack] Output: 1xHDMI OUT [Type A, 19-pin female] 1 x lR OUT [3.5mm Stereo Mini-jack] 2xUSB 2.0 [USB-A, 4-pin female) |
|
HDR |
HOR, HDR10, HDR10+, Dolby Vision, HLG |
|
Audio Format |
LPCM 7.1CH, Dolby True HD ano DTS-HD Master |
|
ESD Protection |
Human body model – ±8kV (Air-gap discharge) &+4kV (Contact discharge) |
|
Housing |
Metal Enclosure |
|
Dimensions |
140mm (W)x65mm (D)x18mm (H) |
|
Weight |
Transmitter : 245g , Receiver : 249g |
|
Power Supply |
DC 24V/1A , Support bi-directional POC function |
|
Power Consumption |
13.2W (Max.) |
