Description
| Parameter | Value | |
|
Model |

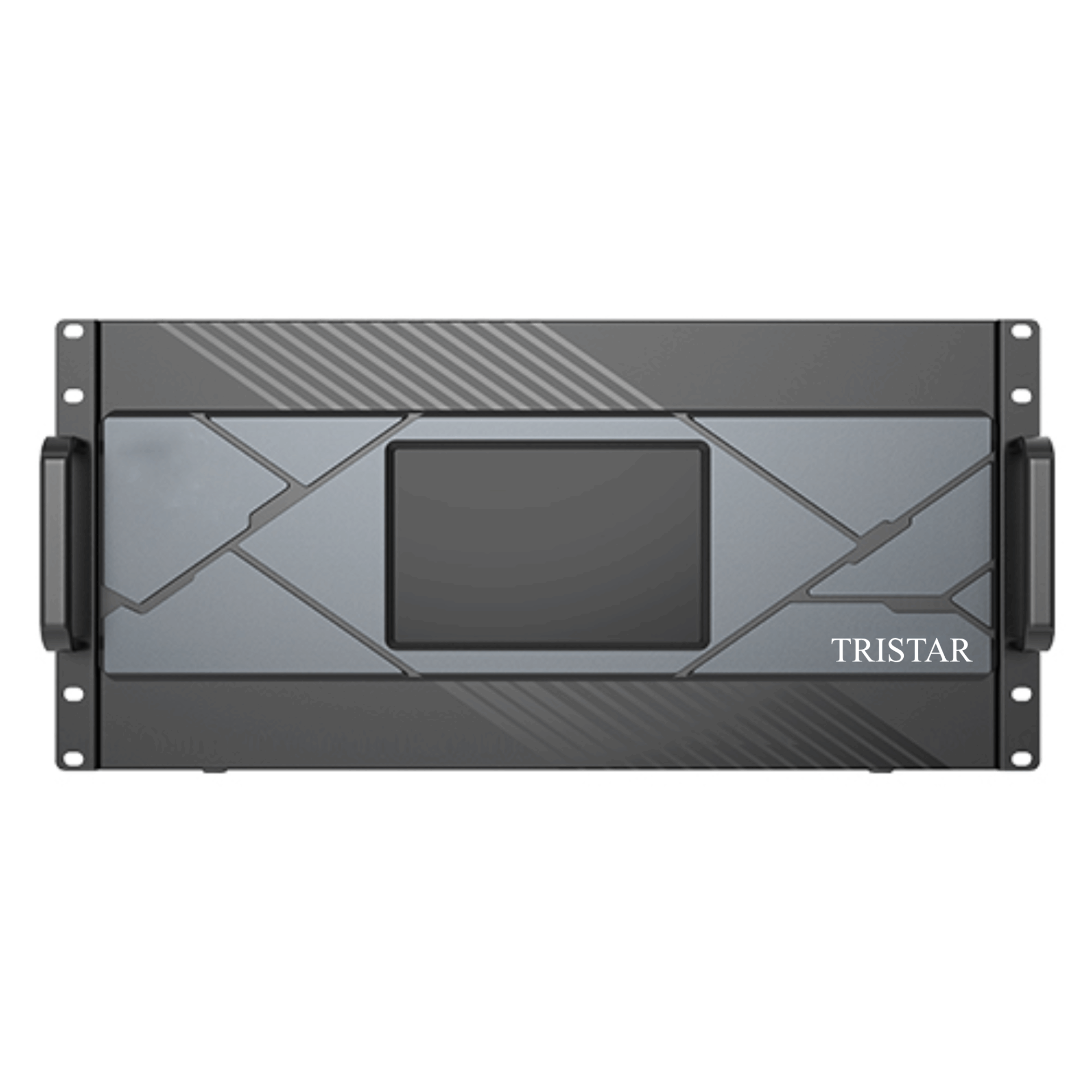

TRI-LDC-N-TS5 |
|
|
Rack Unit |
5U |
|
|
Max. Input Cards (supported) |
10 |
|
|
Max. Input Channels (supported) |
40 |
|
|
Max. Output Cards (supported) |
3 |
|
|
Max. Output Channels (supported) |
12 |
|
|
Max. Loading Capacity |
16xRJ45+2xfiber sending card |
31.2 million pixels |
|
20xRJ45 sending card |
39 million pixels |
|
|
4xfiber sending card |
62.4 million pixels |
|
|
Max. Layers |
48 |
|
|
Electrical Specifications |
Power connector |
100–240V~, 50/60Hz, 10A–5A Note: The TRI-LDC-N-TS5 comes with a single power supply. A redundant power supply is optional. |
|
Power consumption |
400 W |
|
|
Operating Environment |
Temperature |
0°C to 45°C |
|
Humidity |
0% RH to 80% RH, non-condensing |
|
|
Storage Environment |
Temperature |
–10°C to +60°C |
|
Humidity |
0% RH to 95% RH, non-condensing |
|
|
Physical Specifications |
Dimensions |
482.6 mm × 532.8 mm × 228.2 mm |
|
Net weight |
17 kg (chassis) |
|
|
Gross weight |
21.3 kg (chassis) |
|
|
Noise Level (typical at 25°C /77°F) |
＜45 dB (A) |
|
|
Packing box |
660 mm × 570 mm × 210 mm |
|
|
Packing Information |
Accessories |
1x Power cord 1x RJ45 Ethernet cable 1x Grounding cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual 1x Custom Letter |
