Description
|
Parameter |
Value |
|

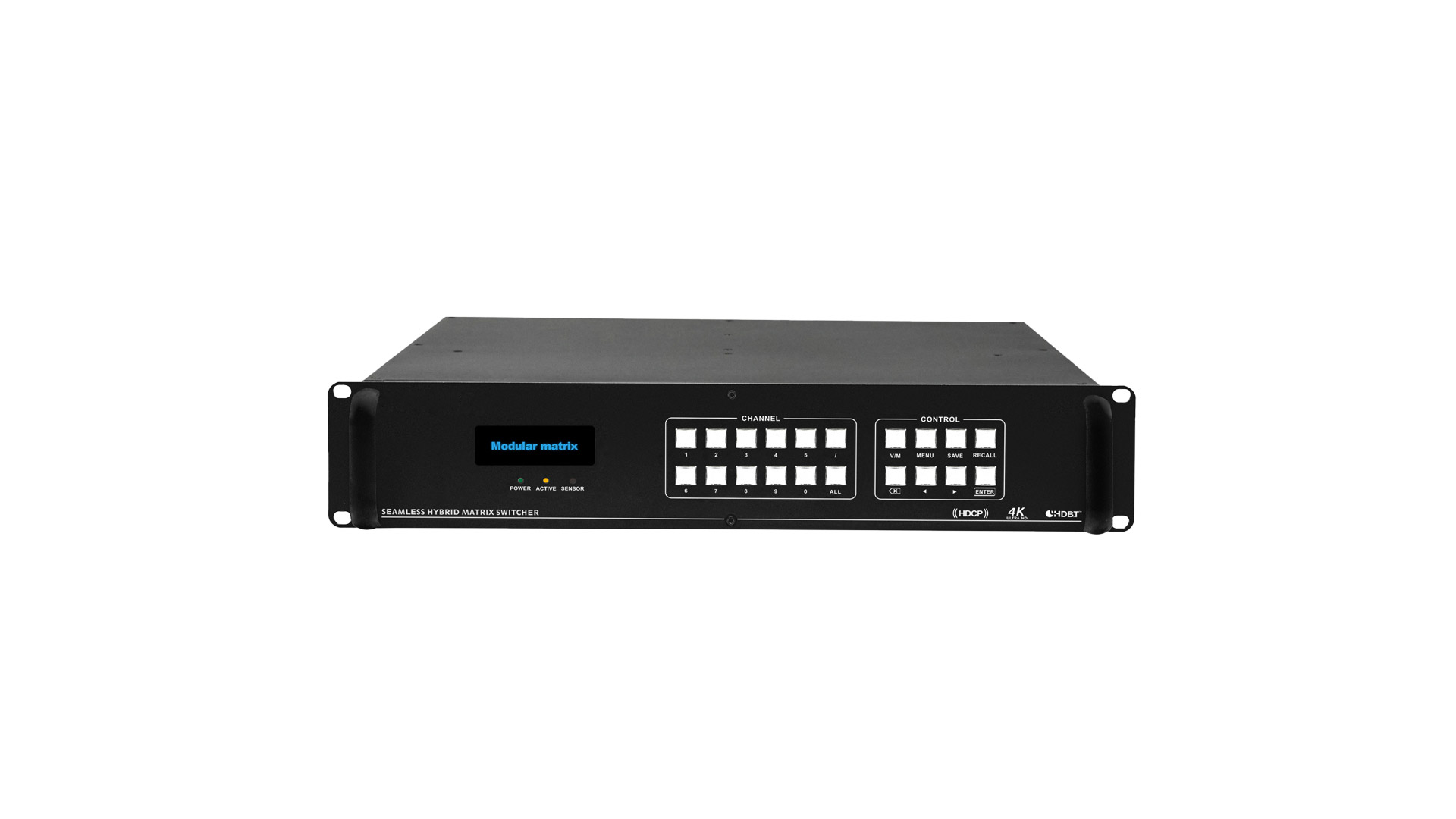

Chassis |
2U |
|
Specifications |
2U chassis, supports up to 8 inputs and 8 outputs |
|
Number of input cards |
2 |
|
Number of output cards |
2 |
|
Number of control cards |
1 |
|
Power Supply Default power supply Backup power supply |
1-1 |
|
Power |
18W |
|
Dimensions(mm) |
445x400x88 |
|
Card |
|
|
Input card |
DVI HD, Dual-Link DVI 4K, HDMI HD, HDMI 4K, VGA, Component, Composite, YC, SD-HDI, HD-SDI, 3G-SDI, Fiber, HDBaseT HD and HDBaseT 4K |
|
Output card |
DVI HD, Dual-Link DVI 4K, HDMI HD, HDMI 4K, VGA, Component, Composite, YC, SD-HDI, HD-SDI, 3G-SDI, Fiber, HDBaseT HD and HDBaseT 4K |
|
Control mode |
|
|
Network control |
1 RJ45 interface, 10M/100M adaptive, support the management and configuration of the machine. |
|
Serial control |
2 RS232, can be connected to the central control, and support loop-out control matrix, screen and other third-party equipment |
|
Front panel control |
Support front panel LCD display and switch button control, can modify IP address and other parameters. |
|
Other control |
IR infrared control, KMX switch control, RS485 remote 4-inch touch screen control (optional), web visualization control (optional), HDBASET remote serial port control (optional) |
|
Image Processing |
|
|
Switch effect |
4K fast and seamless switching, no black field, no flicker, no fragmentation, no static picture, single and multi-channel audio and video synchronization switching. |
|
Transmission bandwidth |
10Gbps |
|
Output resolution |
Support 4KX2K HD resolution, customizable configuration resolution. |
|
Environmental parameters |
|
|
Working temperature |
-10~+55℃ |
|
Working humidity |
<90% Non-condensing |
