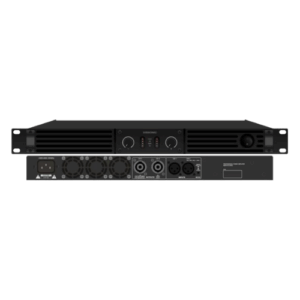

Power amplifier

TRI-ACV-AMP43-3001

TRI-ACV-AMP43-3001 is a series of cost-effective, high-reliability power amplifiers. It uses high-quality components. Through the use of innovative circuit design, with four-channel powerful power output, it can achieve amazing power output by switching the bridge mode, and flexibly combine to meet the requirements of more different occasions. The special low-temperature pure copper transformer, coupled with a large air volume heat dissipation system, guarantees the stable reproduction of perfect sound at any time.

Category

Guanranteed safe checkout

Description

Parameter value
Rated output power 8Ω stereo 300W × 4
Rated output power 4Ω stereo 500W × 4
Rated bridge output power 8Ω bridged 900WX2
Power requirements AC220V
Structure 1U metal chassis design
Number of channels 4CH
Harmonic distortion (1kHz, 8ohms) <0.1%
Frequency response 15Hz-20kHz: ± 0.1dB (1W / 8Ω)
Input impedance balanced 20K ohm unbalanced 10K
Ohm sensitivity 0.775V
Signal to noise ratio ≥100dB
Damping coefficient (350: 1, 1Khz 8ohms)
Conversion rate 28V / US
Output stage Class-D
LED indicator power / signal / distortion / clipping
Input connector balanced male and female XLR
Output connector SPEAKON
Cooling system dual variable speed fans, exhaust air from front to back
Protection function overheat, short circuit, DC output
Dimensions 482 × 295 × 44mm
Certification BIS
