Description
|
Parameter |
Value |
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 |
|
Video Bandwidth |
HDMI : 18Gbps ; USB-C : 5.4Gbps |
|
HDMI Video Resolution |
Up to 4K2K@60Hz 4:4:4 |
|
Color Space |
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Color Depth |
8/10/12bit |
|
HDMI Audio Format |
LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format) |
|
Analog Audio Embedding |
48KHz |
|
Transmission Distance |
LRM mode: 492ft/150m (4K30/1080P) STD-HBT mode: 328ft/100m (4K60/4K30/1080P) |
|
ESD Protection |
Human body model-±8kV (Air-gap discharge) &±4kV (Contact discharge) |
|
Interface |

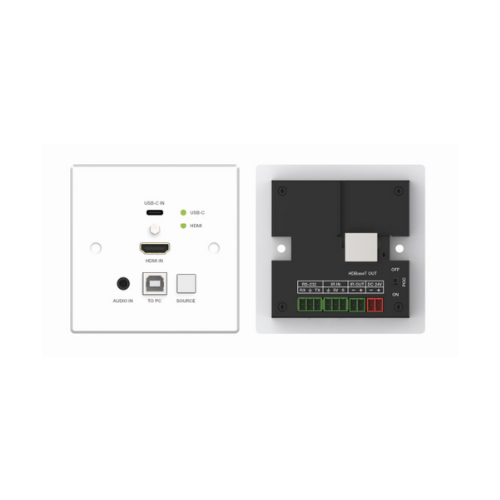

Input: 1 x HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C] Output: 1 x HDBaseT OUT [RJ45] Control: 1 x AUDIO IN [3.5mm Stereo Mini-jack] 1 x TO PC [USB Typе B] 1 x RS-232 [3pin-3.81mm Phoenix connector] 1 x IR IN [3pin-3.81mm Phoenix connector] 1 x IR OUT [2pin-3.81mm Phoenix connector] |
|
Color |
Front panel: White |
|
Dimensions |
86mm [W] x 86mm [D] x 38.5mm [H] |
|
Weight |
234g |
|
Power Consumption (Max) |
12.48W (Max) |
|
Power Supply |
24V/1A (supporting bidirectional POC power supply) |
|
Operating Temperature |
32-104°F/0-40°C |
|
Storage Temperature |
-4-140°F/-20 -60°C |
|
Relative Humidity |
20-90% RH (no condensation) |
